1. Start the FBEditor.

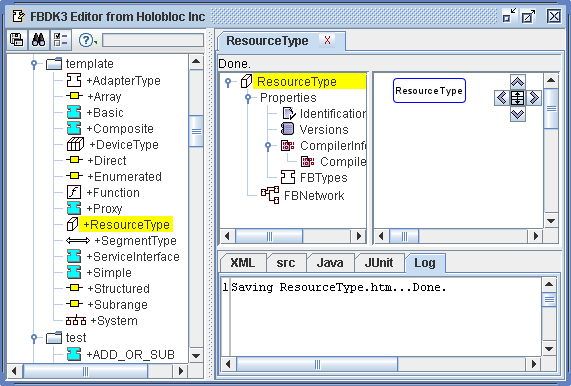

2. Create a new resource type in the editor by double-clicking on the ResourceType file in the template folder.
3. Edit the resource type's elements:
   • Edit the resource type's properties.
   • Edit the resource type's interface (data inputs, i.e., parameters, only).
   • Edit the resource type's body by clicking on the resource type name in the Navigation area and editing the graphic layout of the FBD in the Worksheet/Viewport area.
   • Edit the FB types supported by the resource.

4. When your editing is complete, save your work with the Save As... button.
   • It is a good idea to save your work from time to time while editing, too!
5. Generate and compile a Java® source file with the Save As... button.
6. Resources cannot be tested independently of their containing devices, so you will have to create a system configuration to do this testing. For an example see the TEST_SYS2 configuration.
7. Document your work. It's not done until it's documented!
