FUNCTION_BLOCK TUNING_HMI

Hover on a highlighted element
to pop up its description (if any).

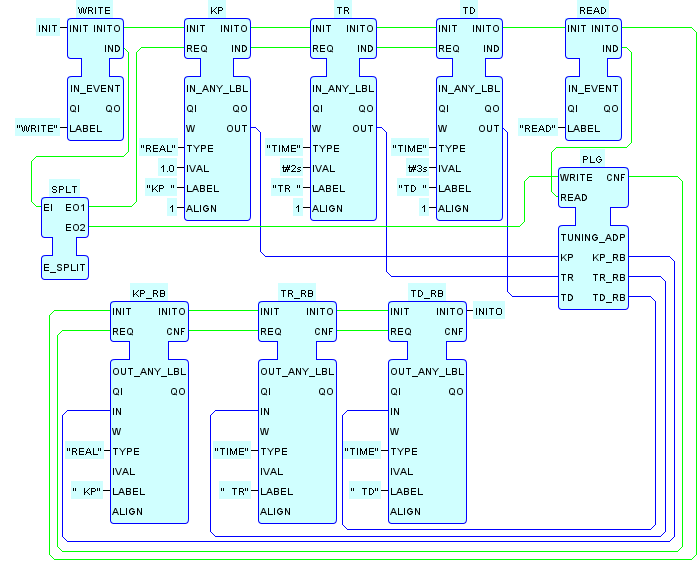

An instance of this Composite Function Block type provides the Graphical User Interface (GUI) elements shown below, interconnected with a plug of type TUNING_ADP. Hence, it can serve as a client of the TUNING service delivered by a server FB, such as an instance of the TUNING_SIM FB type, over the associated adapter connection.

See the TUNING_TEST and TUNING_TESTR system configurations for examples of the use of an instance of this FB type.
