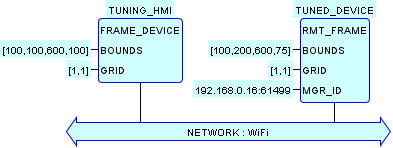

This System Configuration illustrates the application of the Remote Adapter design pattern to the testbed defined in the TUNING_TEST System configuration. Note the highlighted areas in the figure above, which correspond to the XML Mapping element

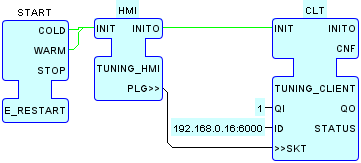

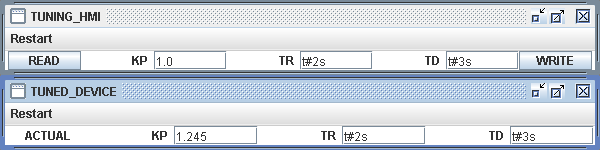

As shown below, the results of this test are identical to the TUNING_TEST results, with the only visible difference being that the TUNING_HMI and TUNING_SIM instances are now running in separate windows located in separate physical devices (TUNING_HMI and TUNED_DEVICE, respectively).

NOTE - This figure corresponds to Step 4 of the TUNING_TEST example.
