This System Configuration provides a testbed for a local TUNING_ADP adapter connection. An example test sequence is shown below. Note that, as defined by the service specification for this adapter type, changed data is not automatically transferred, but must be explicitly transferred by a write or read service sequence.

See the TUNING_TESTR distributed system configuration for an example of mapping this adapter connection between separate Devices.

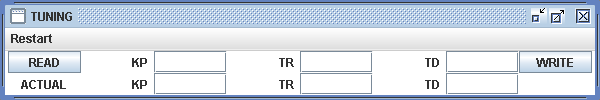

1.The original situation.

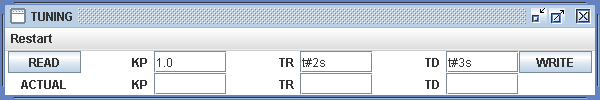

2. After entering data to be written.

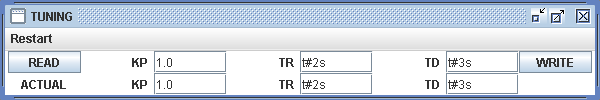

3. After clicking the WRITE button.

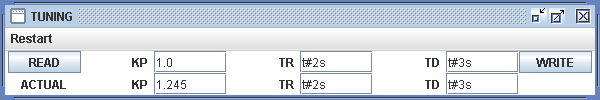

4. After entering a new value of ACTUAL KP.

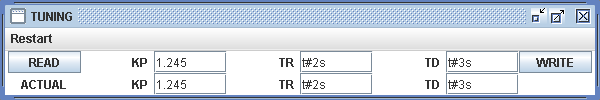

5. After clicking the READ button.
