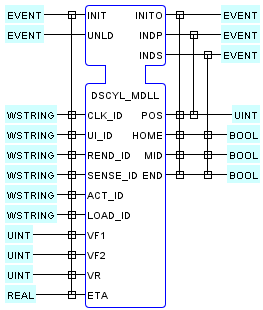

FUNCTION_BLOCK DSCYL_MDLL

Hover on a highlighted element
to pop up its description (if any).

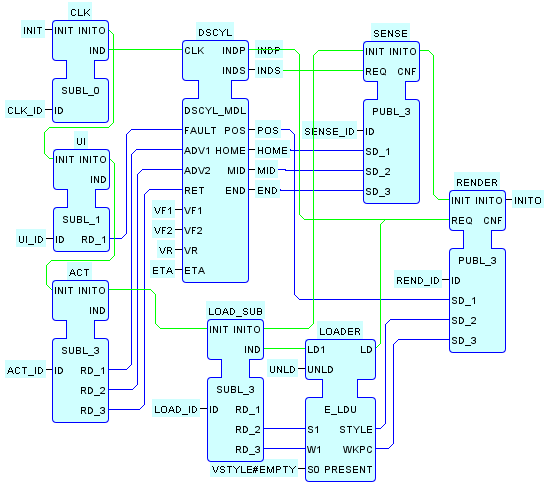

An instance of this Composite Function Block type encapsulates an instance of the DSCYL_MDL type along with the function blocks necessary to link it to appropriate Controller and View elements via the local multicast pattern. An instance of the E_LDU type provides for the modeling of loading and unloading of a workpiece on a carrier associated with the cylinder.

DSCYL_MDLL
