SYSTEM TESTBED_MVCL

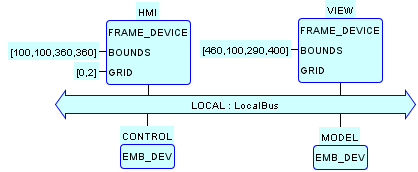

This system configuration implements Model+View+Control testing for the Sortation/Inspection testbed.

Click on a Device to view its configuration.
The MODEL and VIEW devices are configured identically as in the TESTBED_MVL configuration.

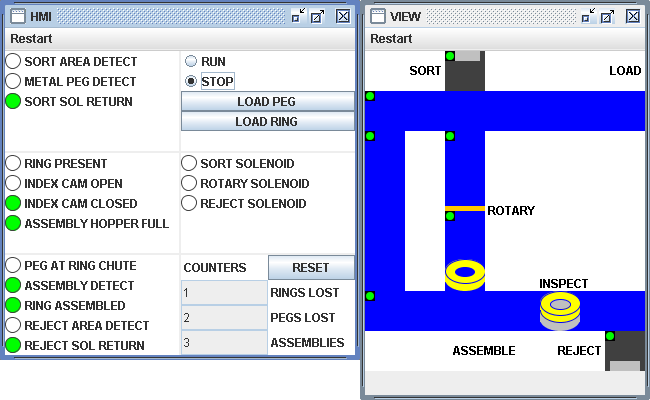

The HMI Device is configured identically as in the TESTBED_MVL configuration, with the exception that the ACTUATORS Resource now displays the actuator values computed by the CONTROL Device, instead of manual input of these values.

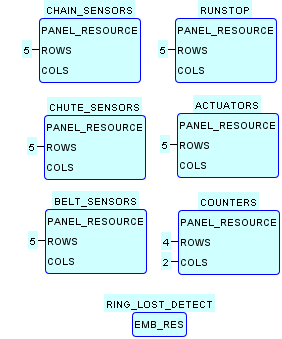

HMI

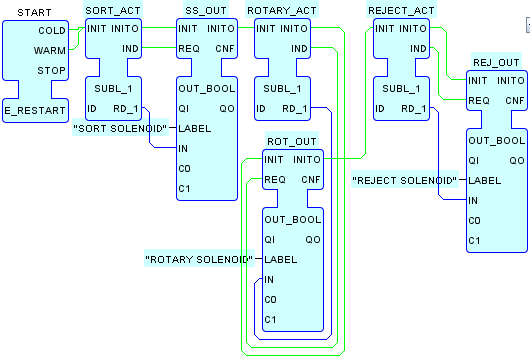

HMI.ACTUATORS

The CONTROL Device contains the logic for sequencing and interlocking of operations among the modeled physical elements. Control is achieved through instances of the function block types SORT_CTL, FEED_CTL and REJ_CTL.

CONTROL

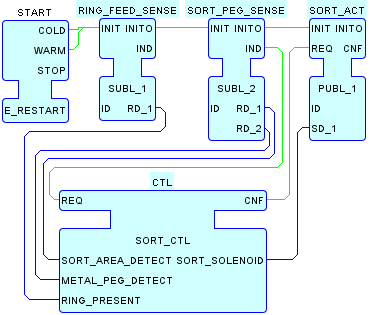

CONTROL.RING_SORT

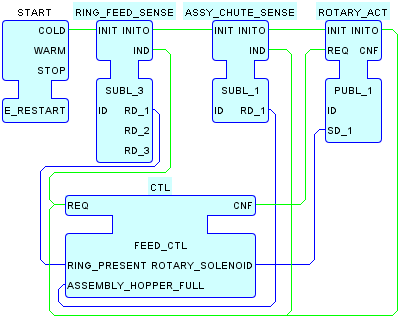

CONTROL.RING_FEED

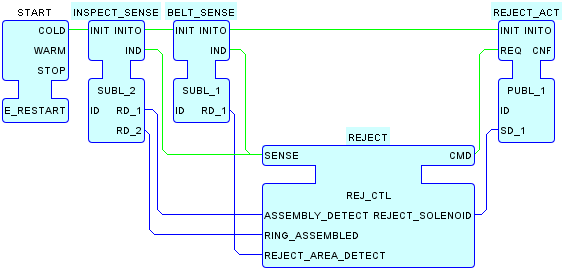

CONTROL.INSPECT

This System configuration uses the Local Multicast design pattern for the communication of data and events among Devices and Resources. The FBDK uses the Tagged Data design pattern to ensure consistency of the communicated events and data. The tags and associated data are identical to those in the TESTBED_MVL configuration.
