APPLICATION TEST

APPLICATION TEST_SUBR

This application is part of the CODEC_TEST2 system configuration. It utilizes instances of IN_ANY and OUT_ANY for input and output of transmitted data, respectively. This data is of the derived subrange data type ANALOG_DATA defined in Table 12 of IEC 61131-3 and also documented at right.

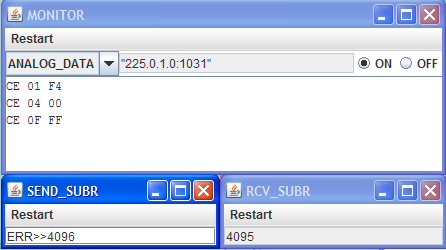

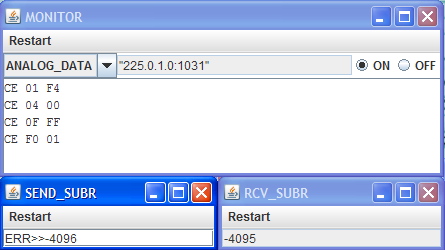

In this example, three values of ANALOG_DATA type have been transmitted with an ASN.1 tag of CD hexadecimal. The transmitted values in decimal (hexadecimal) were 500(01F4), 1024(0400), and 4095(0FFF). An attempt to enter a value of 4096 was detected as being out of range and not transmitted. In continuation of the previous example, a value of -4095(F001) was entered and transmitted, followed by an out-of-range detection for the entered value of -4096.

[Viewer Help]

In this example, three values of ANALOG_DATA type have been transmitted with an ASN.1 tag of `CD` hexadecimal. The transmitted values in decimal (hexadecimal) were `500(01F4)`, `1024(0400)`, and `4095(0FFF)`. An attempt to enter a value of `4096` was detected as being out of range and not transmitted.	In continuation of the previous example, a value of `-4095(F001)` was entered and transmitted, followed by an out-of-range detection for the entered value of `-4096`.
