APPLICATION TEST

APPLICATION TEST_AI16

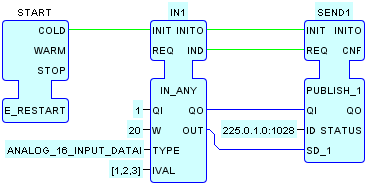

This application is part of the `CODEC_TEST2` system configuration. It utilizes instances of `IN_ANY` and `OUT_ANY` for input and output of transmitted data, respectively. This data is of the derived data type `ANALOG_16_INPUT_DATAI` as shown at the right and further described in subclause 2.3.3.1 and Table 12 of IEC 61131-3.

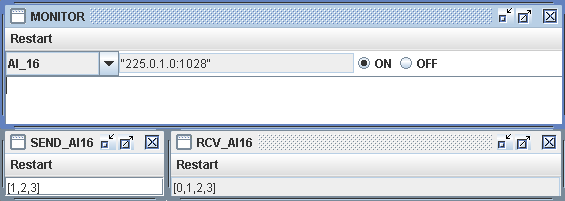

This is the initial situation before transmission of data. Note that the partial array `[1,2,3]` to be transmitted is different from the initialized value of `[0,1,2,3]` in the receiver.

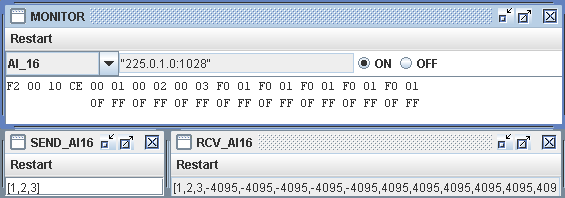

Here is the situation after data transmission has been triggered by pressing the Enter key in the lower left text field (data in the monitor window has been reformatted for easier reading). The array data has been transmitted with an ASN.1 tag of `PRIVATE 15 CONSTRUCTED (EF` hexadecimal), with a length of 16 items (`0010` hexadecimal), and an item tag of `CE (PRIVATE 14)` for items of type `ANALOG_DATA`. Note that the first 5 items for which values are not given in the lower left field are filled with the default value for the first 8 data positions of `-4095` (`F001` hexadecimal), while the last 8 items are filled with their default values of `4095` (`0FFF`).
