Event and Variable Dialogs

When editing the interface of a FB type, resource type, or device type, similar dialog styles are used both create event inputs and outputs and input, output and internal variables, and to edit existing elements. A new event or variable is created by using the New item of the library element's popup menu, and an existing event or variable is edited by double-clicking on its type name or selecting the Edit option of the popup menu of the type name. The table below shows the dialog for each type, and where it can be used.

When creating a new element, the Name field has the default value *Name*, which must be edited to a valid IEC 61131-3 identifier.
You can type in an event type in the Type field of the event name, or leave it blank for the default EVENT type.
IEC 61499 has special rules for connecting events that are not of the default type!
You can select the data type for a variable from the drop-down list.
If the data type that you want to use does not appear in the list, you can add a new type by selecting it in the file chooser and pressing the Add button.
You can enter the number of elements to be included in a single-dimensional array variable in between the square brackets [] .
Pressing the OK button or pressing the Enter key when editing in the Name or Comment fields, the Type field of the Event dialog, or the array size field of the Variable dialog will cause the dialog to attempt to close and save the current values for the edited element. If an error is found, the window will not close and an error message will appear in the status field below the title bar.
Pressing the Cancel button will close the window and cancel any changes entered in the Name, Type and Comment fields.

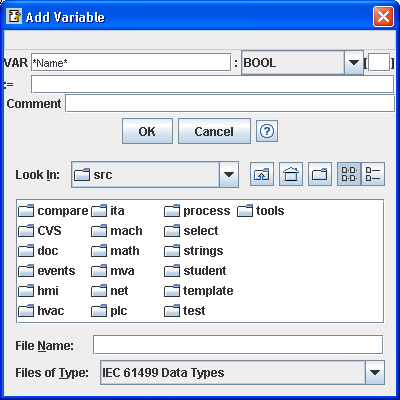

Add an event input or output to a FB type.	Add an input variable to a FB type, resource type, or device type, or an output or internal variable to an FB type.
