SYSTEM TEST_ADP_SYS

TEST_ADP_SYS
ADP_TEST.RES2
ADP_TEST

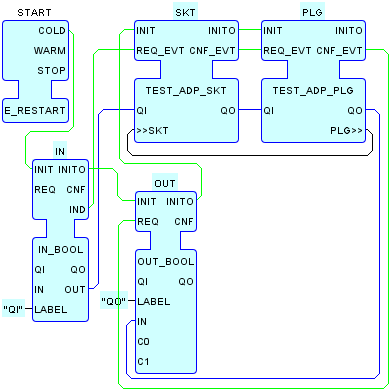

This system configuration utilizes instances of the TEST_ADP_PLG and TEST_ADP_SKT types to provide graphic user interface (GUI) elements for testing plug and socket instances, respectively, of the TEST_ADP adapter type. Additional GUI elements are provided to test the pass-through of the QI input to the QO output independent of the adapter interfaces. A typical test sequence is illustrated below.

  1. The initial situation.
  2. After entering data in the TEST_ADP_SKT instance and pressing the REQ pushbutton.
  3. After entering data in the TEST_ADP_PLG instance and pressing the CNF pushbutton.
  4. After pressing the Restart/Cold menu item.
  5. After changing the QI value.
1
2
3
4
5
