to pop up its description.

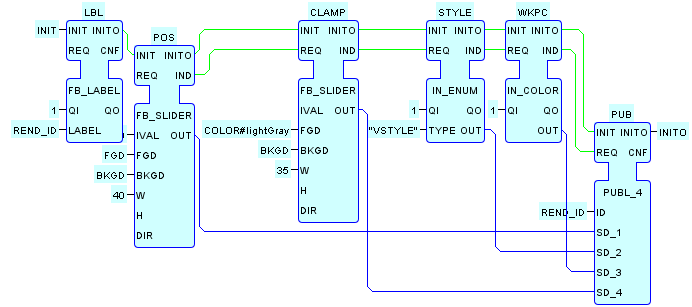

An instance of this Composite Function Block type includes the HMI
elements and local
multicast functionality to test an instance of the MECHC_VIEWL type, including
both the workpiece and clamp positions. It can also be used for any
view element that requires two UINT position inputs, such as the XY_VIEWL type.
See the DRILL_VIEWL
and PNP_VIEWL
configurations for examples of its use.
The local multicast channel name, as well as the HMI label, is
specified by the REND_ID input. For convenience, the
default value of this input is <name>_REND, where
<name> is the instance name of the MECH_HMIL
instance. This can be overridden by connection to a non-default
variable or configuration parameter.
