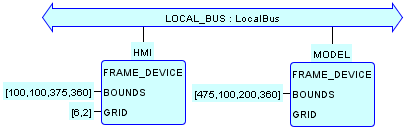

SYSTEM DRILL_MVL

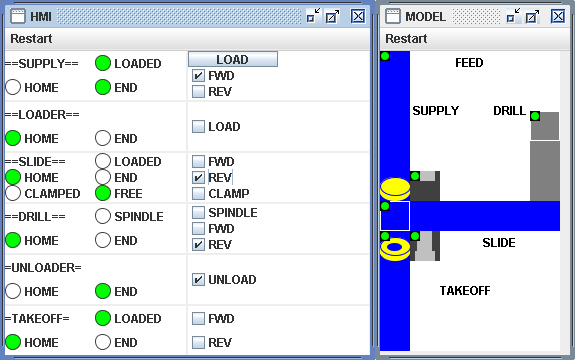

HMI
MODEL

MODEL

This System Configuration implements the layered Model+View testing architecture for the Drilling example.

The MODEL Device encapsulates the functionality of both the Model and View layers. Its INPUT_VIEW and OUTPUT_VIEW Resources are configured identically to the INPUT and OUTPUT Devices, respectively, of the VIEW Resource in the DRILL_VIEWL System configuration.

Each of the major sections of the View (SUPPLY, etc.) is assigned its own Model Resource (SUPPLY_MDL, etc. - instances of EMB_RES). These Resources contain the appropriate Model elements (instances of the XBAR_MDLL, SOL_MDLL, and XSLIDE_MDLL types) and the logic for their interactions. Each of these elements communicates its state to the corresponding View element via the same local multicast channels as were used by the HMI in the DRILL_VIEWL configuration.

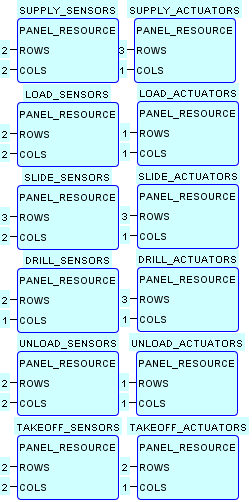

Each of the modeling Resources ( SUPPLY_MDL , etc.) in the MODEL Device is assigned its own pair of Resources ( SUPPLY_SENSORS, SUPPLY_ACTUATORS , etc.) in the HMI Device for the input of actuator values to and display of sensor values from the corresponding Model element. The same local multicast channels as are used for communication between the HMI elements and their corresponding Model elements in this configuration will be used for communication of sensor and actuator values between Model and Controller elements in the next step of the methodology.

This System Configuration uses the Local Multicast design pattern for the communication of data and events among Resources. The FBDK uses the Tagged Data design pattern to ensure consistency of the communicated events and data, as shown in the table below.

Tag Name Type(s) Description
DRILL_ACT BOOL,BOOL,BOOL FWD, REV, SPINDLE_MOTOR
DRILL_SENSE BOOL,BOOL,BOOL HOME, END, SPINDLE_ON
LOAD_SOL_ACT BOOL LOAD
LOAD_SOL_SENSE BOOL,BOOL LOADER_HOME, LOADER_AT_END
SIM_CLK Simulation Clock
SLIDE_ACT BOOL,BOOL,BOOL FWD, REV, CLAMP
SLIDE_SENSE BOOL,BOOL,BOOL,BOOL,BOOL HOME, END, LOADED, FREE, CLAMPED
SUPPLY_ACT BOOL,BOOL FWD, REV
SUPPLY_SENSE BOOL,BOOL,BOOL HOME, END, LOADED
TAKEOFF_ACT BOOL,BOOL FWD, REV
TAKEOFF_SENSE BOOL,BOOL,BOOL HOME, END, LOADED
UNLOAD_ACT BOOL UNLOAD
UNLOAD_SENSE BOOL,BOOL HOME, END

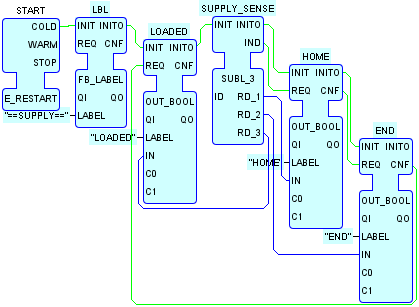

HMI.SUPPLY_SENSORS

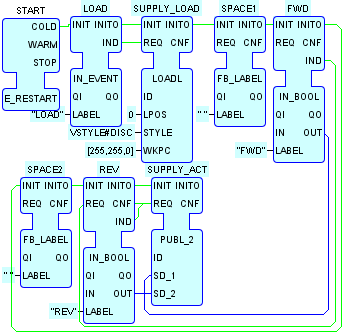

HMI.SUPPLY_ACTUATORS

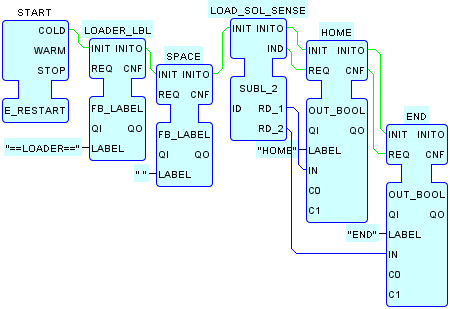

HMI.LOAD_SENSORS
HMI.LOAD_ACTUATORS

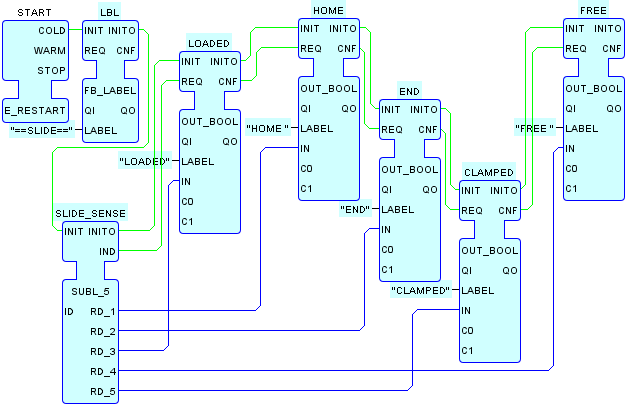

HMI.SLIDE_SENSORS

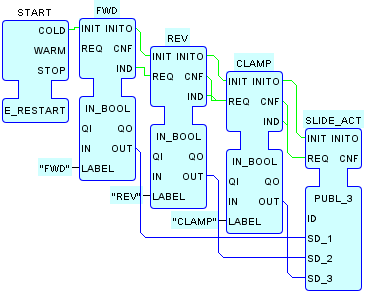

HMI.SLIDE_ACTUATORS

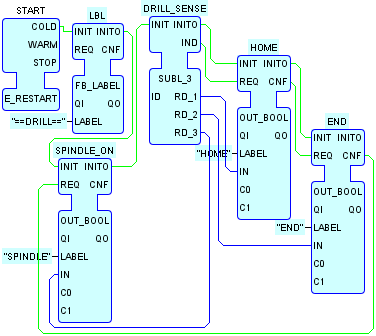

HMI.DRILL_SENSORS

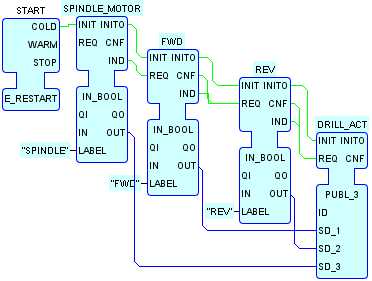

HMI.DRILL_ACTUATORS

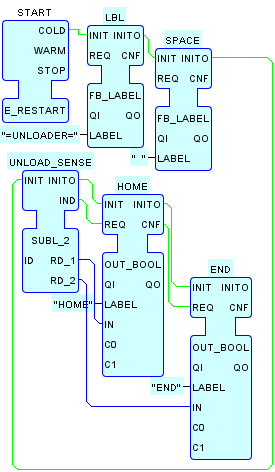

HMI.UNLOAD_SENSORS
HMI.UNLOAD_ACTUATORS

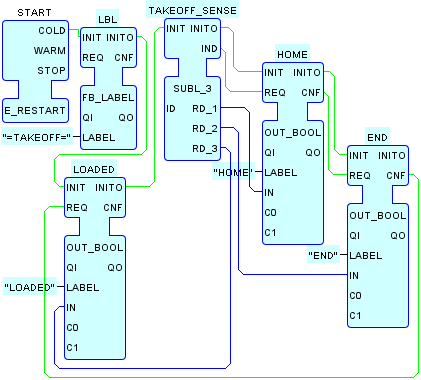

HMI.TAKEOFF_SENSORS

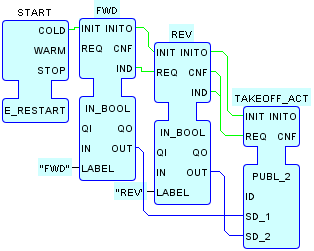

HMI.TAKEOFF_ACTUATORS
MODEL.CLOCK

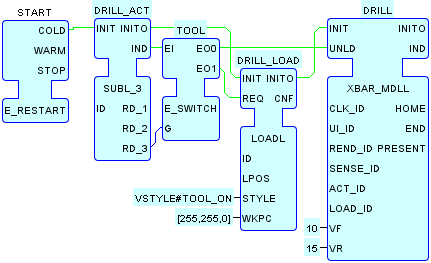

MODEL.DRILL_MDL

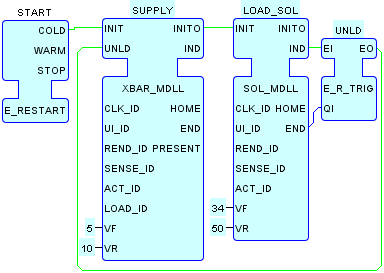

MODEL.SUPPLY_MDL

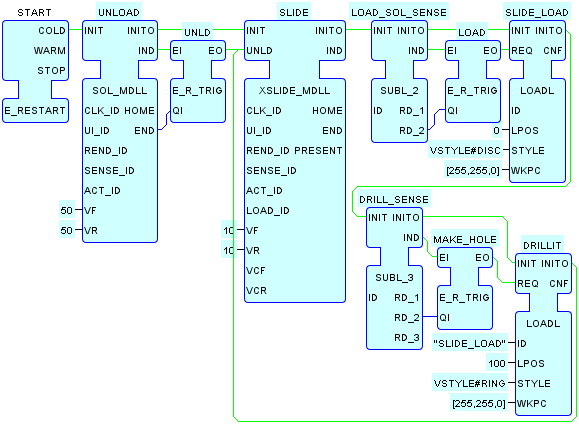

MODEL.SLIDE_MDL

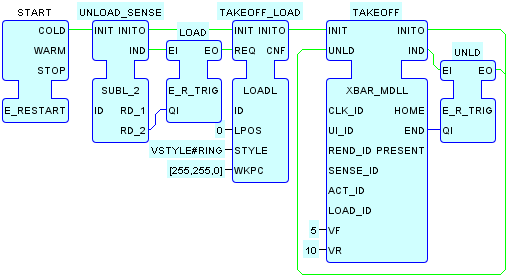

MODEL.TAKEOFF_MDL
