This System Configuration implements the layered Model+View+Control+Diagnostics
architecture for the drilling
example. It is derived from the DRILL_MVCL

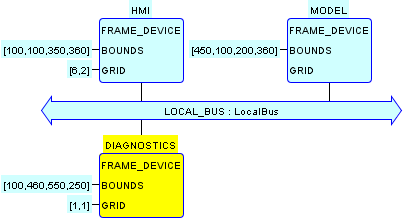

System configuration by the addition of the DIAGNOSTICS Device

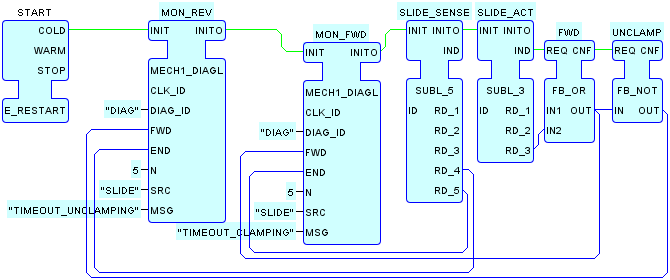

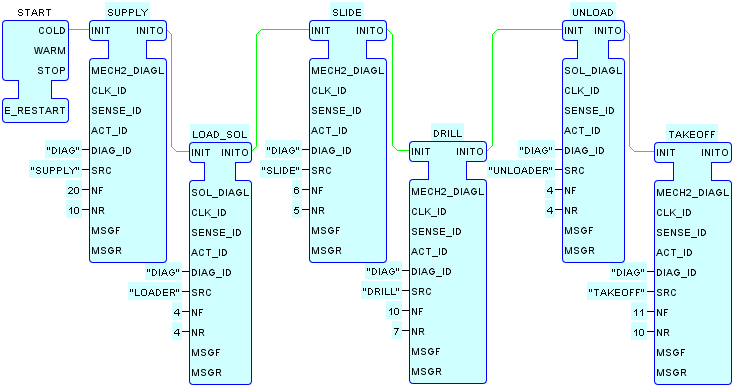

shown below. This adds the two Local Multicast
channels, as shown in the table below, to those defined in the DRILL_MVCL System
configuration.

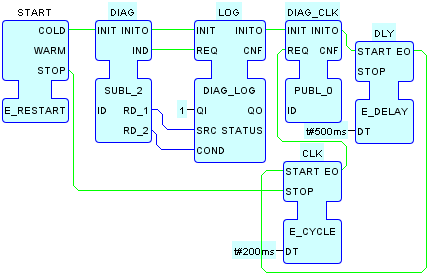

| Tag Name | Type(s) | Description |
|---|---|---|
DIAG
|
WSTRING,WSTRING
|
Diagnostic SRC (Source), COND (Condition)
|
DIAG_CLK
|
|
Diagnostic Clock Event
|
