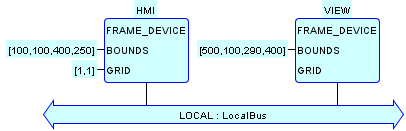

SYSTEM TESTBED_VIEWL


This system configuration implements View testing for the Sortation/Inspection testbed.

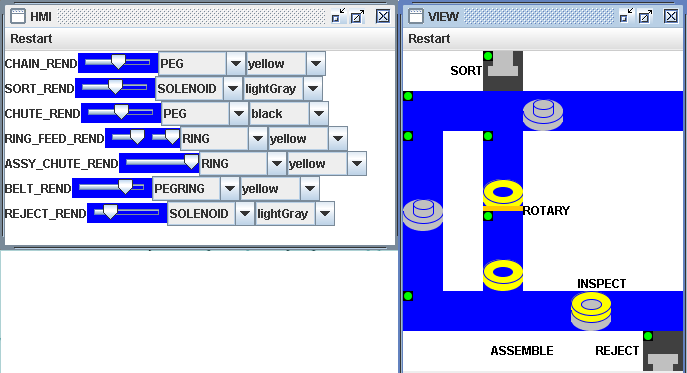

Additionally, it is used to provide the graphics for the Animation of operational sequences.
The HMI device provides the functionality of the Human Interface layer.
Inter-layer communication is implemented with the local multicast pattern,
e.g., by using PUBL_3/SUBL_3 for linking the MECH_HMIL/MECH_VIEWL pairs.
HMI

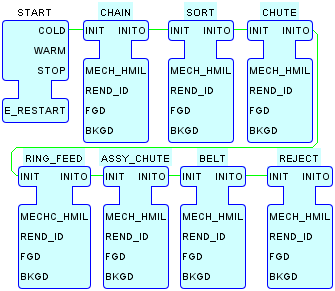

HMI.HMI_PANEL

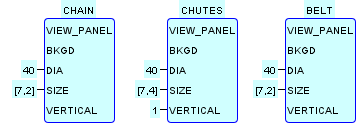

The VIEW device encapsulates the functionality of the View layer
in three instances of the specialized VIEW_PANEL resource.
VIEW

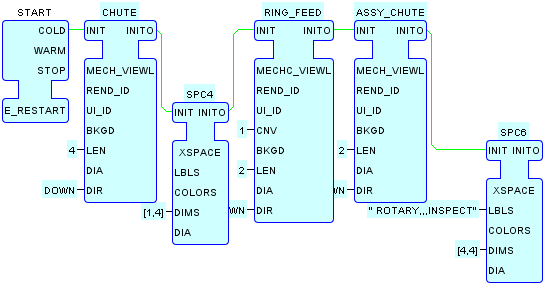

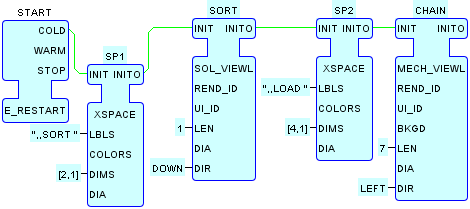

VIEW.CHAIN
VIEW.CHUTES
VIEW.BELT
